Description of specifications:

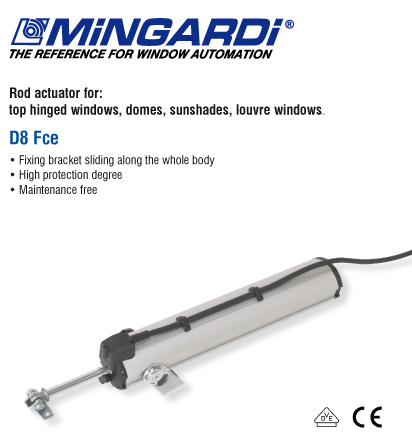

MINGARDI linear actuator with rigid rod and high resistance to maximum loads. Operation 230V AC 50Hz power supply. In compliance with the relevant European Directives. Fitted with limit switches and relays for connection in parallel. Incorporated thermal overload protection.

Available colours: anodised silver. Complete with fixing accessories.

Technical data:

Technical features 230 V~

Fixing accessories

CODE DESCRIPTION

2700102 Front pin for sunshades application

2713836 Kit actuator support bracket
Control unit for actuators 230V AC 50Hz

CODE DESCRIPTION

2700171 Control unit for 2 actuators 230V AC 50Hz

CODE	DESCRIPTION	STROKE	COLOUR	THRUST TENSILE	POWER CONSUMPTION	PROT. DEGREE	SPEED MIN.	VOLTAGE
2700934	D8	200 mm	Silver	500 N	175 W	IP 55	ca. 12 mm/s	230V~ / 50Hz
2700933	D8	300 mm	Silver	500 N	175 W	IP 55	ca. 12 mm/s	230V~ / 50Hz
2713834	D8	400 mm	Silver	500 N	175 W	IP 55	ca. 12 mm/s	230V~ / 50Hz

CODE	DESCRIPTION
2700102	Front pin for sunshades application
2713836	Kit actuator support bracket

CODE	DESCRIPTION
2700171	Control unit for 2 actuators 230V AC 50Hz
