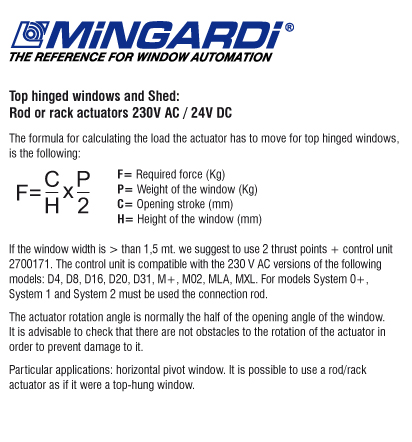

Top hinged windows and Shed:
Rod or rack actuators 230V AC / 24V DC
Please contact our technical support service for further information and / or special applications.
Rod or rack actuators 230V AC / 24V DC
Please contact our technical support service for further information and / or special applications.
Technical data:
- Rod actuators suitable for this application
LINEA TIPOLOGIA STROKE THRUST TENSILE VOLTAGE D4 Fce Rod actuator 105 - 180 - 300 mm 200 N 230V~ / 50Hz Euro 1 Rod actuator Regolabile max: 200 - 300 - 500 mm 450 N 230V~ / 50 Hz Euro 1 Rod actuator Regolabile max: 200 - 300 - 500 mm 450 N 24 V= D8 Fce Rod actuator 160 - 200 - 235 - 300 - 400 mm 500 N 230V~ / 50Hz D16 Fce Rod actuator 300 - 500 mm 1000 N 230V~ / 50Hz - Chain actuators suitable for this application
LINEA TIPOLOGIA STROKE THRUST TENSILE VOLTAGE Micro S Chain actuator 200 - 250 mm 200 N 230V~ / 50Hz Micro S Chain actuator 200 - 250 mm 200 N 24 V= Micro KIT+ Attuatore a catena max 400 mm max 250 N 230V~ / 50Hz Micro 02 Chain actuator Selezionabile 250 - 380 mm 150 - 300 N 230V~ / 50Hz Micro 02 Chain actuator Selezionabile 250 - 380 mm 150 - 300 N 24 V= Micro L Chain actuator 280 - 380 mm 350 N 230V~ / 50Hz Micro L Chain actuator 280 - 380 mm 350 N 24 V= Micro XL Chain actuator 420 - 600 mm 400 N 230V~ / 50Hz Micro XL Chain actuator 420 - 600 - 835 mm 400 N 24 V= Micro P Chain actuator (integrated in the window profile) 200 mm 200 N 24 V= - Rack actuators suitable for this application
LINEA TIPOLOGIA STROKE THRUST TENSILE VOLTAGE System0 Rack actuator 180 - 230 - 350 - 550 - 750 - 1000 mm max 500 N 230 V~ / 50 Hz System0 Rack actuator 180 - 230 - 350 - 550 - 750 - 1000 mm max 500 N 24 V= System1 Rack actuator 180 - 230 - 350 - 550 - 750 - 1000 mm 600 N 230V~ / 50Hz System1 Rack actuator 180 - 230 - 350 - 550 - 750 - 1000 mm 800 N 24 V=
